                                                                                          FD45T9





Specifications

Model
FD45T9
Tire Type Pneumatic
Load Capacity 10000 lbs
Service Weight 16000 lbs
Free Lift 6.1 in (155 mm)
Max Fork Height* 130.0 in (3300 mm)
Power Type Diesel
Fuel Diesel
Displacement 396.3 cu-in (6.494 lit)
Rated Output
HP/RPM
87.4
Max Travel Speed
w/ Load
14.9 mph (24 km/h)
Lift Speed
w/ Load
94.5 fpm (480 mm/s)
Overall Length
(without forks)
126.8 in (3220 mm)
Overall Width 58.3 in (1480 mm)
Overall Height
Fork Lowered
88.0 in (2235 mm)
Right Angle
Stack
189.8 in (4820 mm)

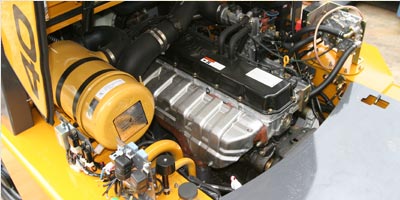

    * The Mitsubishi S6S engines, Power Rated at 87.4 HP and meets EPA Tier II and CARB

        III  specifications with state-of-the-art electronic engine management and catalytic

        converters.

    *  TCM has redesigned these masts with improved structural geometry to resist

        twisting and deliver effortless operation and maximum control while telescoping.

    * The hydraulic steer cylinder is center-mounted within the steer axle for quick

        response and fewer mechanical wear components.

    *  The all-new automatic transmissions are engineered and built by TCM and have cast

        iron cases and larger shafts, gears, bearings, and torque converters.

    *  The entire dash has been lowered for unobstructed operator views of the fork tips.

    *  Spinner steering has standard anti-kickback and features infinite tilt adjustment.

    *  Noise reduction improvements have resulted in significantly quieter operation.

    *  On-board self diagnostics display troubleshooting codes on the instrument panel.

    *  TCM trucks are designed to be reliable, practical, and profitable in your operation.

    *  TCM PRO Class 5 lift trucks have a 1 year bumper-to-bumper limited warranty, and

        have a 2 year/4,000 hour drive train limited warranty.





Based on 130" Standard Upright









Please contact us for other available options

All Models available in Duel Drive
